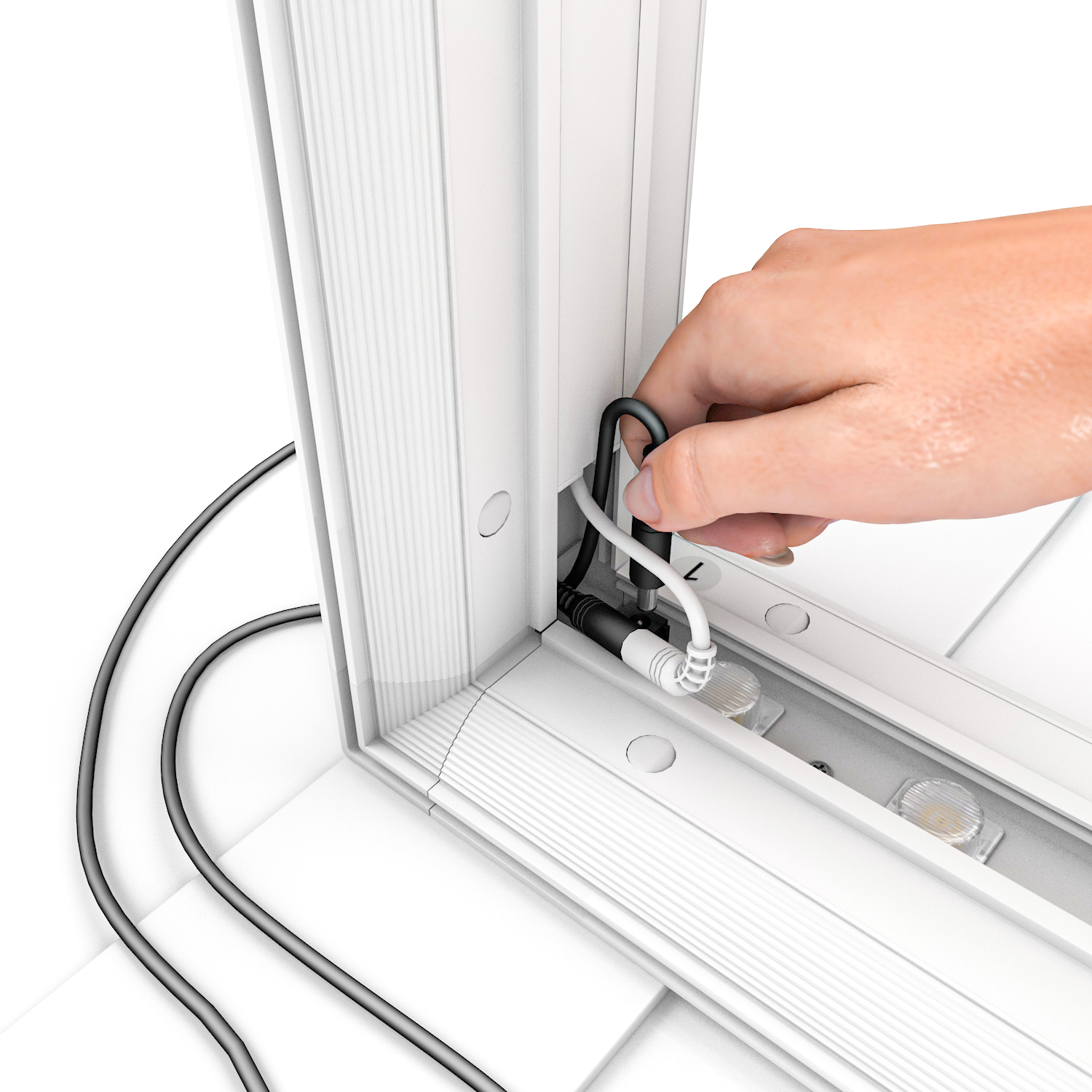

FABRILUX® Lightbox Internal Cable Connection

FABRILUX® Lightboxes Number-Coded Frame Pieces For Tool-Free Assembly

FABRILUX® Fabric Lightboxes Internal Lighting Cable

Backlit Exhibition Stand Kit Includes Three Wheeled Transport Cases

Seen It Cheaper?

Product Enquiry

360° View

FABRILUX^® 3x4 LED Fabric Lightbox L-Shaped Pop Up Stand Kit 16

Name: FABRILUX® 3x4 LED Fabric Lightbox L-Shaped Pop Up Stand Kit 16
Brand: FABRILUX®
SKU: FABRILUX-KIT16
Availability: InStock
Rating: 5.0 (1 reviews)

Brand: FABRILUX®

( 1 Review )

Dispatched in as little as 5 working days* (More Info)

List Price : ~~£3261.00~~ (You Save £996.00 Today)

£2265 ex VAT £2,718.00 inc VAT

3x4 LED Exhibition Stand. Modular And Linkable Free Standing LED Light Box Display With SEG Fabric Graphics. Powerful In-built LED Lights For Stunning Backlit Exhibition Stand. Self-Assemble Exhibition Stands With Portable Cases.

SKU: FABRILUX-KIT16/DS

Graphics:

Single Sided (Includes 1x Printed Graphic & 1x Blackback Graphic Per Lightbox)Double Sided (Includes 2x Printed Graphics Per Lightbox)

Choose Your Option:

Without CounterIncludes 1x Lightbox Counter

Add Graphic Design Service (+£325)

L-Shaped 3x4 LED Lightbox Exhibition Stand
Single or Double Sided TFS Lightbox Panels
Custom Fabric Lightbox Printing
Tool Free Assembly and Disassembly
Linking Accessories Included
Fire Retardant Backlit SEG Graphics
Premium 120mm Deep White TFS Frames
Portable Wheeled Trolley Cases
Exhibition LED Counter Display Add On
2 Year Warranty

3x4 Fabric SEG Lightbox

Stand out at your next trade show, event, or exhibition by using a backlit lightbox display kit to attract potential customers. Illuminated LED stands are brighter and more eye-catching than traditional non-lit branding, which is particularly effective in less well-lit areas such as exhibition halls.

The modular design of FABRILUX® Lightboxes enables them to be used as freestanding displays or connected in an L-shaped display using the included linking brackets.

Our premium-quality FABRILUX® LED Fabric Lightboxes provide bright and powerful backlit illumination thanks to the OSRAM® LED Lighting system that is pre-installed within the TFS frame.

Practical and portable, the complete lightbox display disassembles easily and can be stored and transported in the supplied padded trolley cases (1x per lightbox).

3m x 4m LED Lightbox Exhibition Stand Includes:

1x FABRILUX® 1000mm (w) x 2250mm (h) Lightbox
2x FABRILUX® 3000mm (w) x 2250mm (h) Lightbox
3 or 6 Printed SEG Fabric Graphics (Depending on Selection)
3x Blackout Reverse Panels (For Single Sided Option Only)
2x Standard Stabilising Feet (Per Lightbox)
4x Square Feet
2x Half Feet (Left and Right Side)
2x 90° Linking Brackets
2x Clear Plastic Joining Clips
1x Wheeled Trolley Case with Foam Compartments (Per Lightbox)
1x FABRILUX® LED Exhibition Counter (Optional)

LED Fabric Lightbox Graphics:
Choose from single or double-sided fabric lightbox printing. Single-sided lightboxes feature an unbranded black back reverse panel with white and black sides to accentuate the effect of the internal LEDs on your custom-printed design. Double-sided options allow you to showcase your branding on either side.

All artwork design, printing, sewing, and finishing are done in-house at our manufacturing facility. Replacement custom-printed lightbox graphics can be purchased for rebranding your lightbox display for future events.

Tool-Free LED Lightbox Assembly:
FABRILUX® Lightboxes require no tools for assembly thanks to the numbered frame parts that click together with a push-fit motion. The LED beads are already integrated into the frame, so once you've assembled the frame, you just need to connect the internal cables, plug in, and your display frame is ready for your custom printed graphics. Assembly takes less than 10 minutes per lightbox.

The SEG graphics included with your purchase are easy to install – the silicone edge graphics simply insert into the channels on the lightbox frame for a tensioned fabric lightbox. You can choose to add a custom branded LED Lightbox counter to complete your exhibition stand.

Tradeshow Lightbox Power Consumption:
Each 3m (W) LED Lightbox has two power cables with UK Plugs and a 240v/110v converter, while the 1m (W) Lightbox has just one. To power this complete display stand, you will need a minimum of 630 watts or 675 watts including the LED Exhibition Counter.

Why Buy FABRILUX® 3x4m LED Lightbox Fabric Exhibition Stand Display Kit 16?

3m x 4m LED Exhibition Stand
Fabric Lightbox Printing included
Kit comprised of three free-standing light boxes
Can be used as a modular display or as individual lightboxes
OSRAM® LED technology provides bright and diffused backlighting
Optional LED pop-up counter with extra branding space
Premium quality TFS lightbox frame120mm
Padded transport cases included for each lightbox
In stock in the UK for quick dispatch
2 year warranty

Want to know more about the FABRILUX^® 3x4 LED Fabric Lightbox L-Shaped Pop Up Stand Kit 16? Contact our sales team or call us on 01733 971800.

Stand Size	3.15m x 4.15m
Kit Includes	2x Fabric Lightboxes With Optional LED Counter Display
Height	2250mm
Width	4150mm
Depth	3150mm
Weight	82.10kg Excluding LED Counter / 98.75kg Including LED Counter
Profile Depth	120mm
Mains Powered	Yes
Cable Length	2m With UK 3-Pin Plug
Transformer	DC 24 Volt Output / AC110/240V Input
LED Lights	OSRAM LED Lights - 15 Lights Per 1m
Input Power	1100- 240V 50/60Hz
Watts	630 Watts / 675 Watts (With LED Counter)
Output Power	24V 6.35A
Lights	Lumen 260 per Bulb / 6500K Kelvin / Daylight Colour Temperature
Shape	Corner Stand
Type	LED Light Box Display
Graphic Type	SEG Polyester Fabric
Material	Composite Frame / SEG Polyester Graphic
Frame	White Composite Frame
Stabilising Feet	2x Stabilising Feet Per Lightbox
Assembly	Tool-Free
Double Sided	Custom Printed SEG Fabric Graphics in Single or Double Sided
Colour	White Frame / Custom Printed Graphic
Indoor / Outdoor	Indoor Use
Style of Display	Free Standing
Print Method	Dye-Sublimation Fabric Printing
Recycling	Water based Inks, Recyclable Polyester Fabric
Category	LED Lightboxes
Box Dimensions	1250mm x 460mm x 200mm - 1m (w) 1350mm x 480mm x 260mm - 3m (w) 1120mm x 420mm x 200mm - Counter
Carry Case	Included

Printed and dispatched within 5 working day(s) on receipt of print-ready artwork and proof approval. If you have any questions or need your order sooner please give our team a call on 01733 971800.

Please Note: We cannot begin manufacturing your order until you have provided artwork and signed off the proof. Your 5 day(s) lead-time begins once the artwork proof has been signed off.

Need it faster? Give our team a call on 01733 971800

International Shipping is available for this product, please call us on 01733 971800 for the latest price.

Supplying Your Own Lightbox Artwork?

We have three options available:

1. Use our Automated Proofing Studio

Once you have paid for your order online you can use our automated proofing studio to check that your artwork is suitable for print. This will allow you to upload files and instantly view your artwork proof. Once you are happy with your designs, you can send your order directly to print.
This is the fastest way to print your order.

2. Upload With Your Order

Once you have paid for your order online follow the instructions on screen to upload your artwork using our website. We also email you instructions.
Artwork uploaded with your order is manually checked by our graphics team for any issues that may affect the final print quality. We will send you an artwork proof to sign off before sending to print.

3. Send Via WeTransfer

Once you have paid for your order online follow the instructions on screen to upload your artwork using the WeTransfer service. WeTransfer typically supports larger file sizes. We also email you instructions. Artwork sent is manually checked by our graphics team. We will send you an artwork proof to sign off before sending to print.

If you have any questions about any of these processes, please have a read of our frequently asked questions; or alternatively, you can call us on 01733 971800.

Need Help Designing Your LED Lightbox?

We offer an in-house, professional graphic design service for all the Display Lightboxes where one of our in-house creative design team will work with you to bring your branding to life. Experts in their field, they will take your design brief and create a design that meets your needs perfectly. The final design will not go to print until you are completely happy with it and you confirm final sign off.

Artwork Templates:
